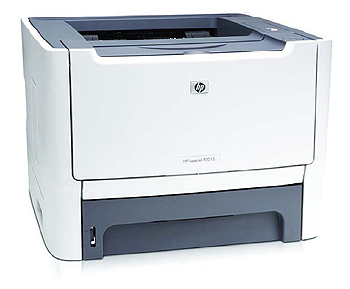

HP® MONOCHROME LASER PRINTER P2015

CONVERSION KIT (#11114)	JUMBO HOPPER (#11151)

OEM HP® 1320 Cartridge (Q5949X), shown on left
.	UNINET P2015 CONVERSION KIT (#11114) UniNet P2015 Conversion Kit includes the following: P2015 Large Waste Hopper w/PCR saddles, saddle springs, PCR contact, PCR contact trigger, hinge pins, OPC pin, drum bearing plate, & mounting screw. All sealing foams and recovery blade are pre-installed. P2015 Left End Cap includes mounting screws, metal contact, & hopper tension spring. Right End Cap includes mounting screws and hopper tension spring

With the UniNet P2015 Conversion Kit, you can make the following conversions. A. OEM HP® 1320 Starter A Cartridge (49A) to P2015 Starter A Cartridge (53A)	B. OEM HP® 1320 Standard X (49X) to P2015 Standard X (53X).

C. Convert either the above OEM HP® 1320 Cartridges into a Jumbo Cartridge to suit the HP® P2015 printer. The steps for each conversion are similar. We will illustrate the following steps using a UniNet (#11151) Jumbo Hopper.	WASTE HOPPER INSTALLATION 1. The first step is to assembly the P2015 Waste Hopper. If you choose to re-use OEM components, please carefully disassemble the OEM drum/PCR/Wiper Blade from the OEM HP 1320 cartridge and clean them thoroughly. Install the wiper blade as shown and tighten the 2 screws. Remember to lubricate the wiper blade.

2. Install the PCR as shown. If you are using an OEM PCR, please make sure it is carefully cleaned. Remember to add conductive grease on the black PCR saddle. Check the conductivity across the PCR and the PCR contact by using a multimeter.	INSTALLING THE OPC DRUM 3. First, place the Drum into the Waste Hopper as shown.

4. Attach the Bearing Plate with screws as shown.	5. Insert the OPC Pin on the opposite side by pressing in.

6. Assembled Waste Section.	INSTALLING THE PCR CONTACT TRIGGER 7. Install the PCR contact Trigger onto the P2015 Waste Hopper as shown in the following steps. This trigger is included in the P2015 Conversion kit.
